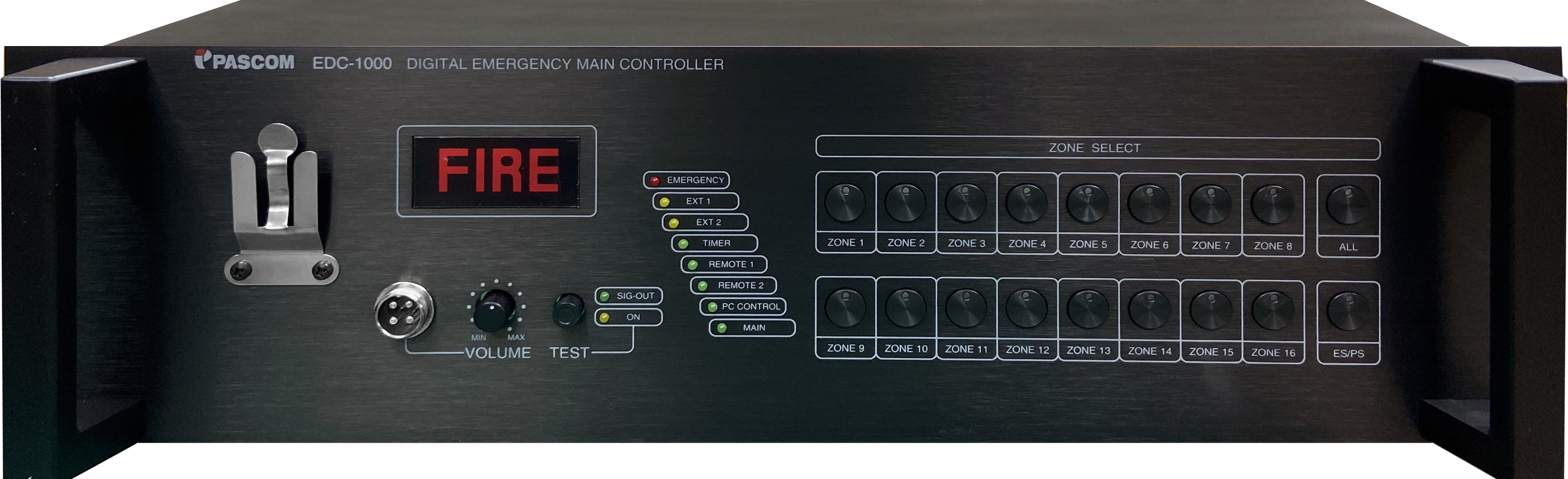

1BUS SYSTEM

> PA > 1BUS SYSTEM

PRODUCT FEATURES: - Integrated system with emergency panel,
emergency switch, matrix, relay group,
and speaker selector terminal board functions.
- Priority broadcast control is possible by connecting
emergency broadcast equipment and the ERM-1000.
- Automatically switches to remote broadcast or emergency
broadcast based on priority even during regular broadcasting.
- Fire broadcasts are automatically transmitted to the
corresponding channel based on 16 fire contact signals,
and an additional 15 EDS-1000s can be connected for a
total of 256 fire contact signals.
- Manually select and broadcast emergency and general
broadcasts.
- LED indicators indicate priority and broadcast status for each
channel for easy confirmation.
- General and emergency broadcast channels are configured to
enable 3-wire broadcasting.
- Information such as FIRE/RM groups set in the operating
program is stored in internal memory, allowing normal operation to resume even in the event of a PC failure.
- RS-422 communication enables long-distance transmission
when broadcasting via a PC.
- Integrated system and simple connection reduce installation
time and save space.
