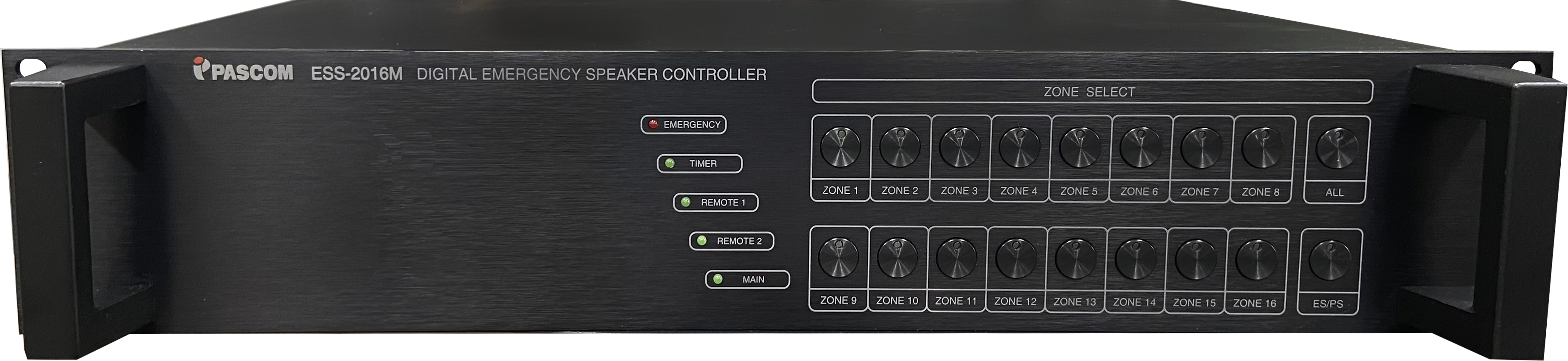

1BUS SYSTEM

> PA > 1BUS SYSTEM

PRODUCT FEATURES: - This product integrates the functions of an Emergency
Switcher, Matrix, Relay Group, Speaker Selector, and
Terminal Board.
- It controls priority broadcasting by connecting emergency
signal equipment and remote amplifiers.
- Even during regular broadcasting, the system automatically
switches to remote or emergency broadcasting based on the
priority of an external remote signal or emergency signal.
- Fire broadcasting is automatically transmitted to the
corresponding channel based on the 16 fire contact signals.
Up to 15 additional ESS-2016S units can be connected for
a total of 256 channels.
- You can manually select emergency and general broadcasting
and broadcast to the desired channel.
- The priority and broadcast status of the corresponding
channel are displayed on an LED for easy monitoring.
- Channels for general and emergency broadcasting are
configured for 3-wire broadcasting.
- Information such as the Fire/RM group set in the system
setup program is stored in internal memory, ensuring normal
operation even in the event of a PC failure.
